Aluminium doors
PT60

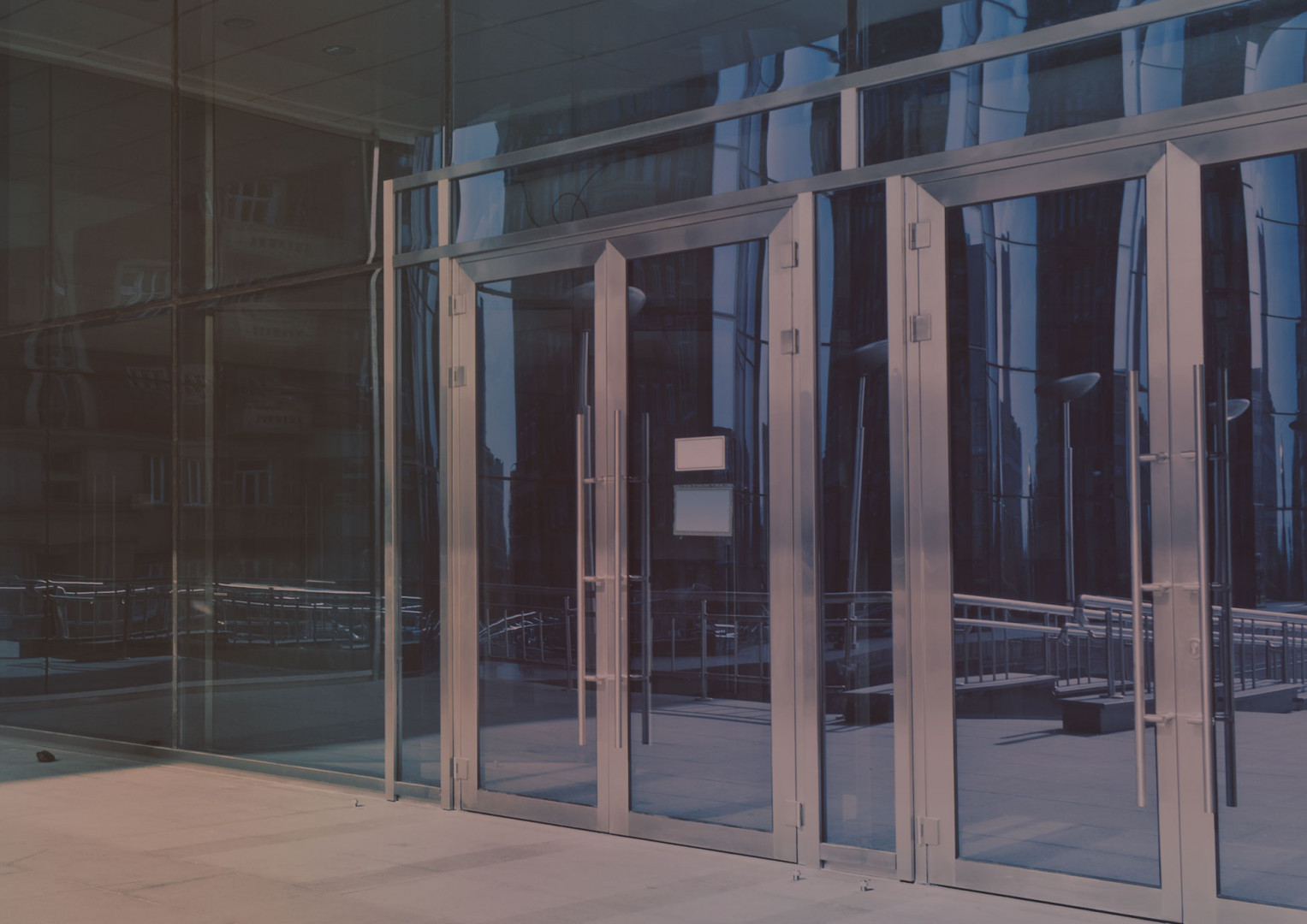

Discover the HENSFORT PT 60 aluminium system chosen by the investors and creative architects, for whom safety, quality and unique design are of paramount importance.
The HENSFORT PT 60 aluminum system is used in outdoor installation and large-size buildings that require stable corner connections and many variants of door leaves. Thanks to these attributes as well as functionality and ease of assembly, the HENSFORT PT 60 aluminum system satisfies investors who are looking for the building with an unusual architectural composition. HENSFORT PT 60 is used in development projects, hotels and public utility buildings.
ALUMINIUM SHAPES
-
EN AW-6060 per PN-EN 573-3 status T66 per PN-EN 515 Al Mg Si 0.5 F22 in line with DIN 1725 T1, DIN 17615T1
THERMAL PERFORMANCE
- Frame heat transfer coefficient, Uf = 2,6-2,8 W/(m2.K)
INFILLS
- Single glazing or glazing unit with any type of glass or opaque panel, from 10-51 mm thick
SURFACE FINISH
- Powder coated with PE paints in line with the Qualicoat requirements, all RAL palette colours available.
- Anodised version in the following colours: natural aluminium, olive, champagne, gold, “old gold”, brown – as per the Qualanod requirements.
- Lacquered to “wood” colour
SEALING
- EPDM synthetic rubber in line with the 7863 standard and implementation of the standard in line with ISO 3302-01, E2
FITTINGS
- We install only fittings made by reputable companies, such as: Fapim, Savio, Iseo, Cisa, Geze, KFV, itp
APPROVALS AND QUALITY CERTIFICATES
- Initial type testing in line with PN-EN 14351-1, burglary protection class test results: RC2 class as per PN-EN 1627:2011
CONFORMITY CERTIFICATE
- RC 2 resistance class in line with PN ENV 1627:2006
STANDARD EQUIPMENT
- Double-sided standard handle or standard handrail
- 3 2-sashes hinges
- One-chamber glazing Ug = 1,1 W / (m2.K)
- A single-point lock
- Aluminum threshold with a thermal break, height 20mm
- Standard classless insert
- Standard colors RAL 9016MAT, RAL 8019MAT, RAL 9006, RAL 7016MAT
OPTIONAL EQUIPMENT
- Stainless steel handle, straight stainless steel pipe handrail, aluminum or stainless steel handle, door sign
- Roller hinges or hidden hinges
- Glazing from 10 mm to 47 mm
- Three-point mechanical or automatic locks
- Door closer with arm or rail, self-closing hidden
- Electrocatch
- Fingerprint reader, code keypad
- Class "C" insoles
- Any colors from the RAL palette, wood-like colors
- Anti-theft pins
